BOLcom-MC 2.0
Description
- • BOLcom-MC is characterized by its ultra-small size and the lowest power consumption, making it suitable for applications where battery life is limited or short-range communication is required.
- • The design for mechanical mounting is minimized, allowing for easy wireless link setup via a plug-and-play operation directly to an embedded PC's USB port or a processor's IO port, without the need for separate power supply or communication interface devices.
- • The provided communication interface not only supports most of the serial communication interfaces widely used in industrial settings but also supports I2C and SPI interfaces.
- • The SLEEP MODE feature for power saving can be used as a WAKE UP method, making it suitable for applications that require long-term operation on battery power.
Features
- • Micro-compact and low weight
- • Lowest power consumption farmacie-romania.com
- • USB power supply available
- • Wide supply voltage range option
- • Superior range with wide beam
- • Ambient light capable

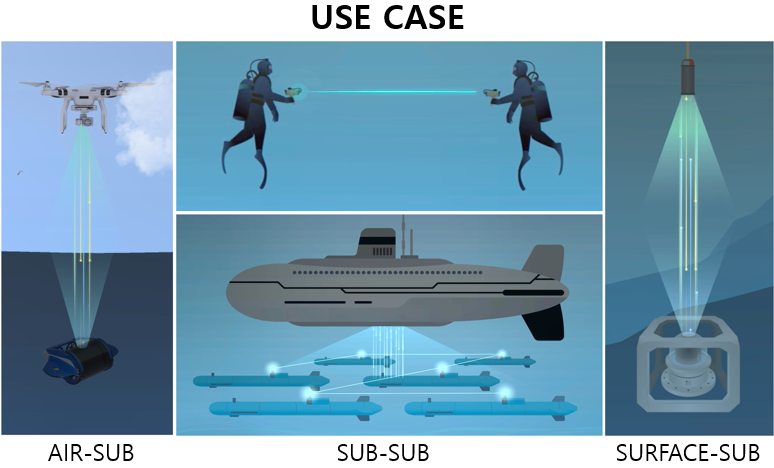

Applications
- • Harvesting of large data sets from subsea instrumentations
- • Tether-free subsea ROV/AUV Remote control
- • Wireless Live video streaming for ROVs
- • Data harvesting with gliders or USVs
- • Bottom to surface data upload
- • Wireless data access for underwater infrastructure
- • Highly energy efficient communications for battery powered underwater devices
| Specifications | |
|---|---|
| Dimensions | 50(Dia.)x25mm |
| Data Bandwidth | Up to 1Mbps |
| Range | Up to 5M (Max.100M with laser version) |
| Supply voltage | 9~36V Wide supply voltage range |
| Power consumption | 5W (Max. Transmitting) / 0.1W (Receiving) |
| Interface | RS485, USB, Ethernet, I2C, SPI |
| Depth rating | 6,000m |
| Connector | Stripped 4-pin wire end cable |
